Introduction
In this project I built interactive dashboards using Amazon QuickSight and datasets stored in Amazon S3.
The objective was to understand:
- dataset ingestion
- manifest files
- dashboard creation
- interactive analytics
- infrastructure automation
This project is especially useful for:
- analytics workflows
- business intelligence
- dashboard creation
- data visualization
Services Used
The project uses the following AWS services:
- Amazon S3
- Amazon QuickSight
- Terraform

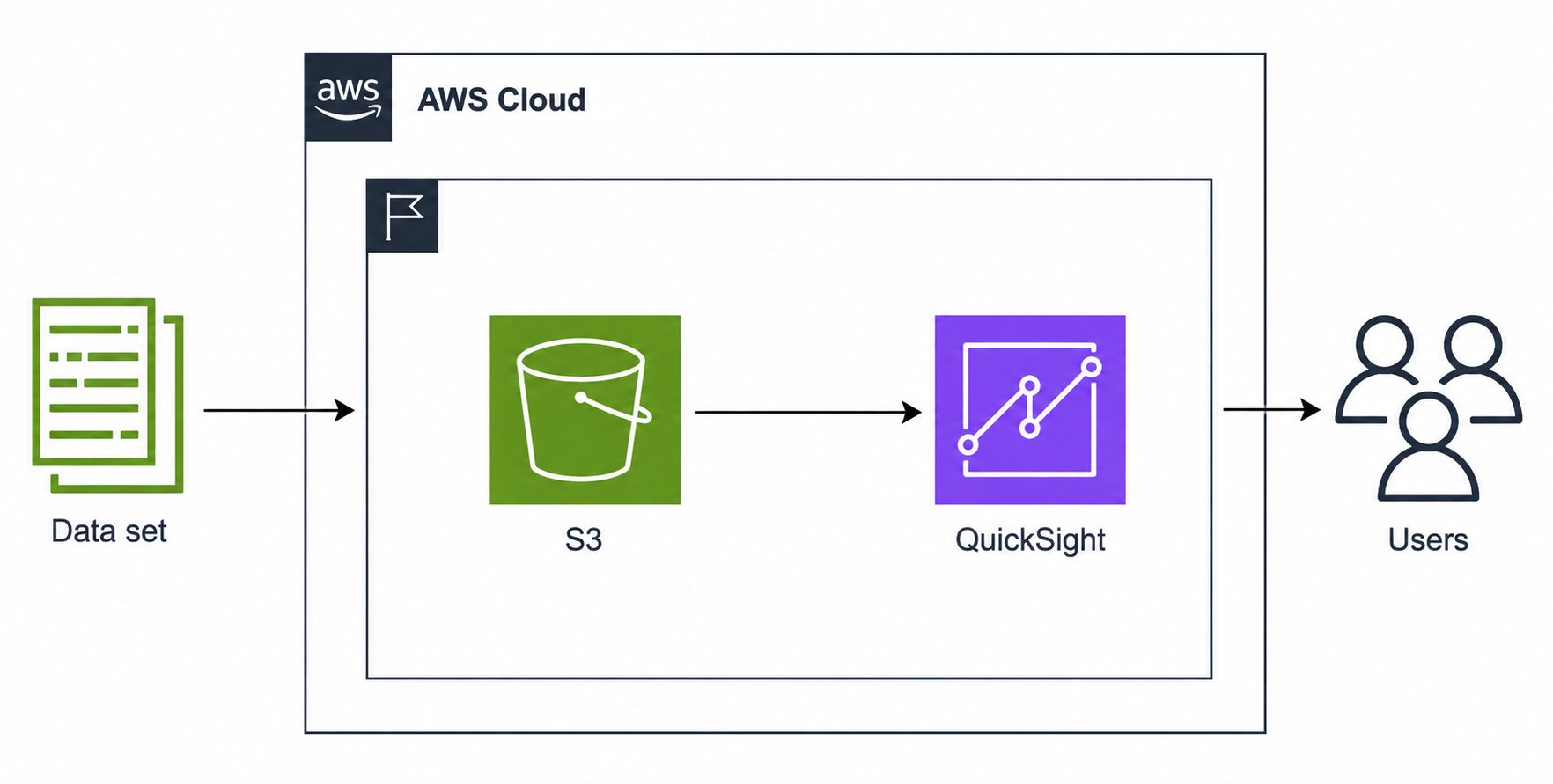

Architecture
Dataset
↓
S3 Bucket
↓
Manifest File
↓
QuickSight
↓
Interactive DashboardDatasets are uploaded into S3 and visualized through QuickSight.
Configuration
Step 1 — Manifest File
QuickSight requires a manifest file to locate and import the dataset from S3.
Terraform dynamically generated:
listeners.json.tpl
↓
listeners.json

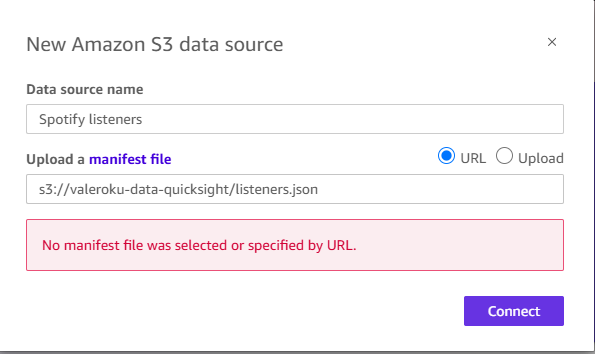

Step 2 — Create the Data Source
Create a new datasource and provide:
S3 URI
↓
Manifest File
↓
Connect

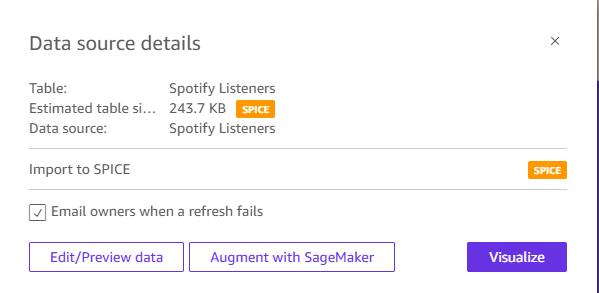

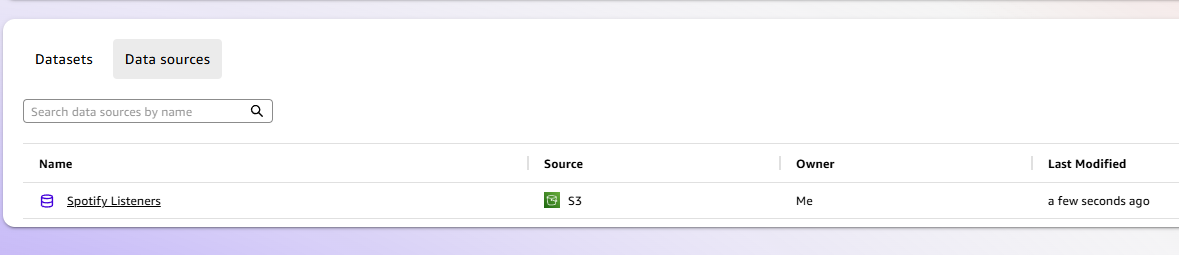

Step 3 — Dataset Creation
Once QuickSight validates access permissions, the dataset becomes available.

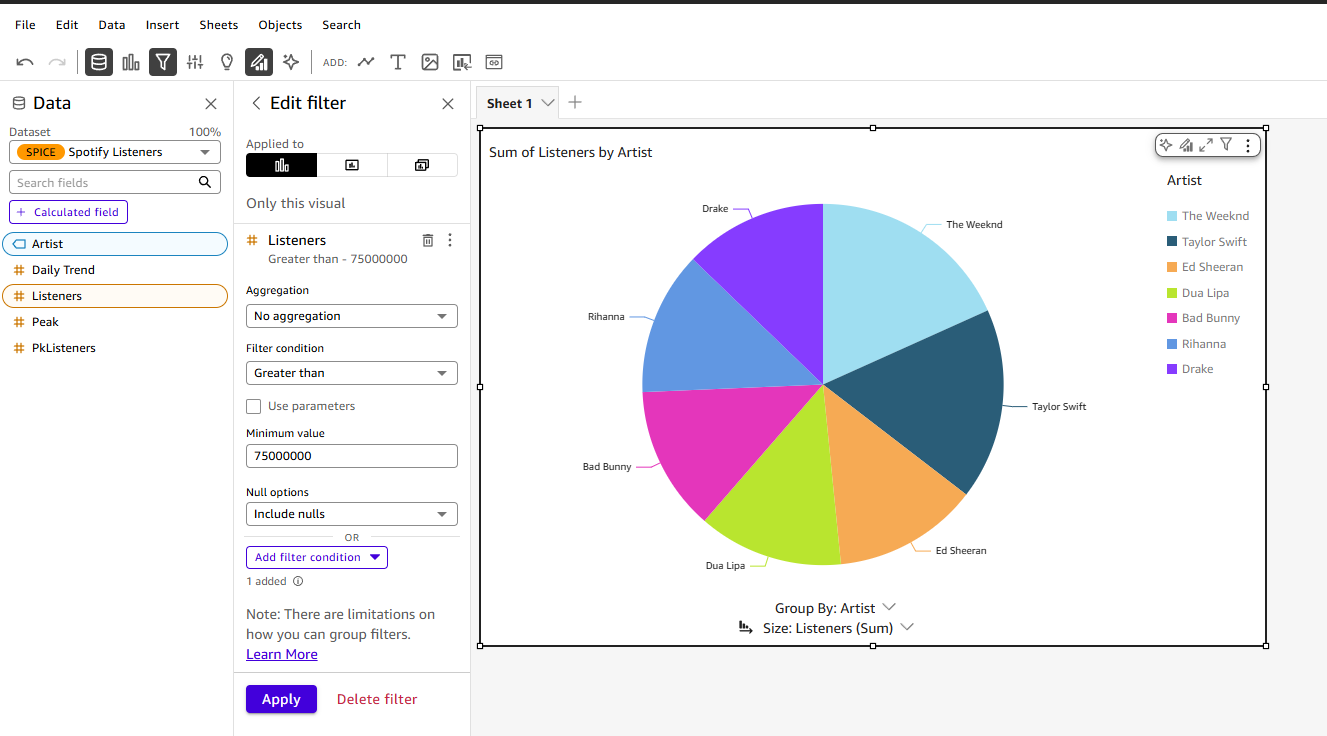

Step 4 — Data Visualization
After importing the dataset:
- select fields
- create filters
- choose visualization type
Example:
Listeners > 75,000,000

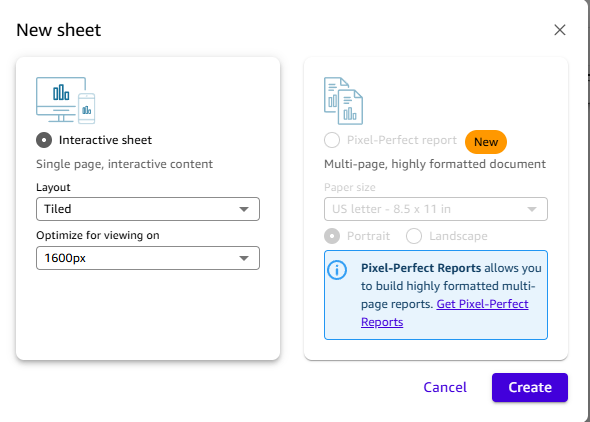

Step 5 — Interactive Dashboard
Create a new interactive sheet and configure the layout.
Important Considerations
Best practices:
- validate datasets
- automate provisioning
- secure S3 access
- optimize dashboards
- monitor performance
Lessons Learned
This project helped reinforce:
- analytics workflows
- dashboard creation
- QuickSight configuration
- dataset ingestion
- infrastructure automation
References
Project Results
This project successfully demonstrated a complete analytics workflow using Amazon QuickSight and Amazon S3.
Key outcomes:
-
Successfully stored and managed dataset files in Amazon S3 to enable scalable and reliable data access.
-
Connected Amazon QuickSight to the S3 dataset using a manifest file to create a structured data source.
-
Built interactive visualizations to analyze artist popularity based on listener metrics.
-
Demonstrated how to transform raw dataset files (CSV/JSON) into meaningful visual insights.
-
Implemented an automated infrastructure setup using Terraform to improve reproducibility and deployment efficiency.
Project Code
You can find the Terraform code used in this project in the following GitHub directory.
